Product descriptions

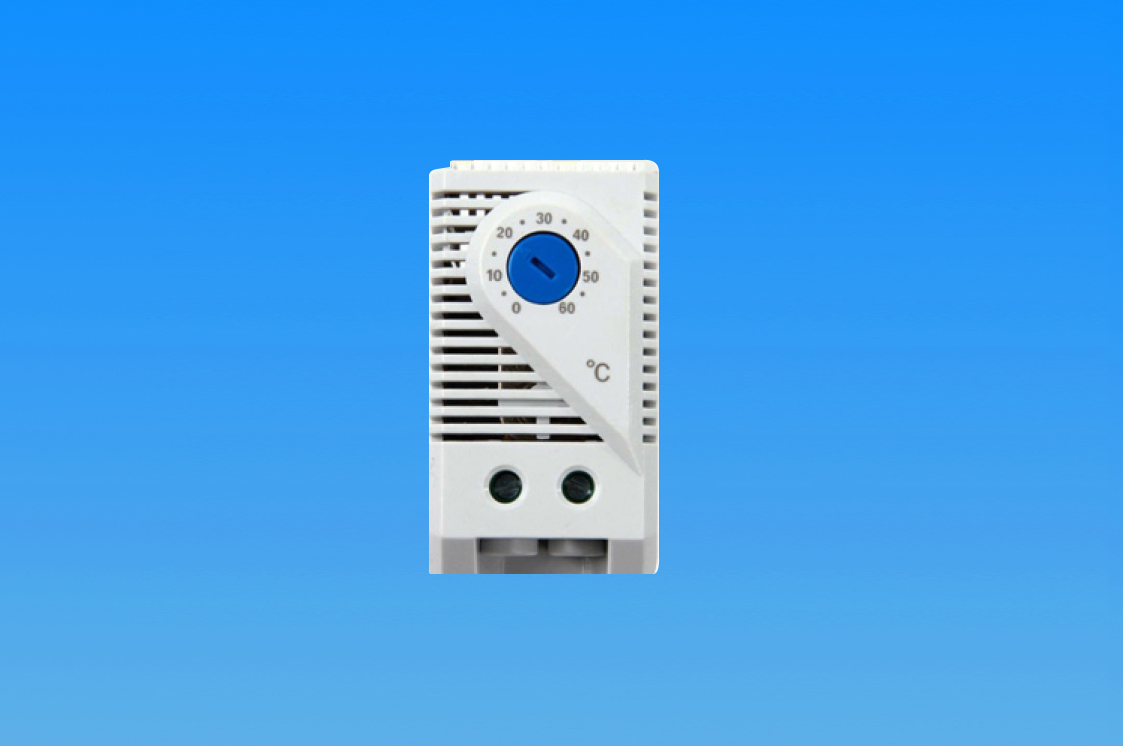

Particularly suitable for controlling filter fans and heat exchangers, this thermostat can also be used as a output signal generator when the temperature in the enclosure is exceed the designed temperature.
| Product Model | 7100000 | |
| Temperature control range | 0-60°c | |
| Status | NO（Blue），NC（Red） | |
| Switch temperature tolerance | 7K （+-4K） | |
| Sensor | Bi-metal controller | |
| Maximum switching capacity | 250VAC.10(2)A/12VAC.15(2)A/DC 30W | |
| electrical connection | 2-poie 2.5mm.0.8Nm | |
| Mounting | Flexibel mounting on 35mm DIN support rail | |
| Connection of terminals | UL94V0 | |
| Dimention | 60×33×43mm | |
| Operation/Range of storage | from -5° to +80° | |
